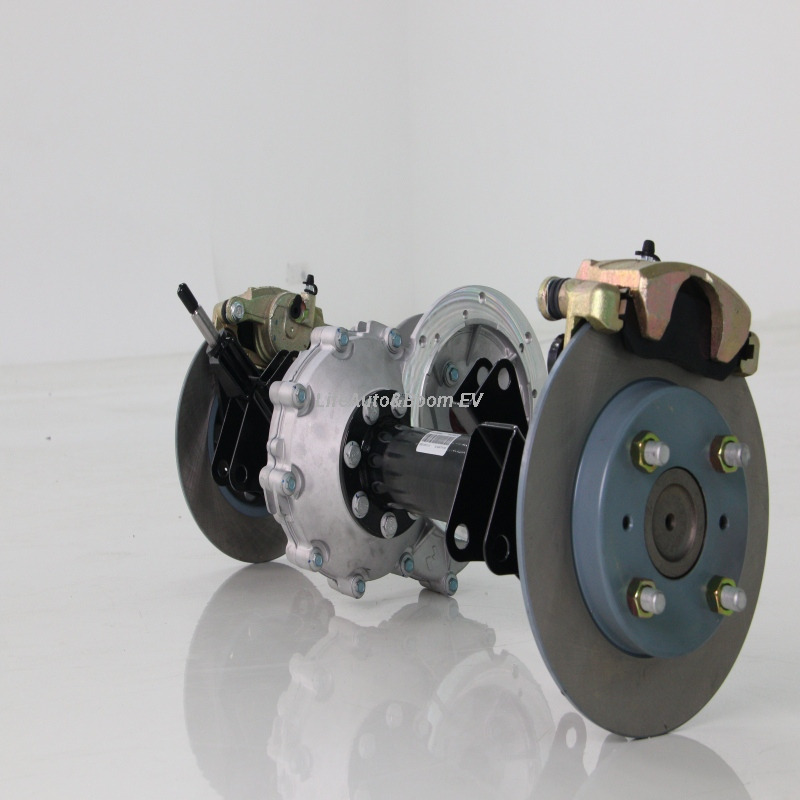

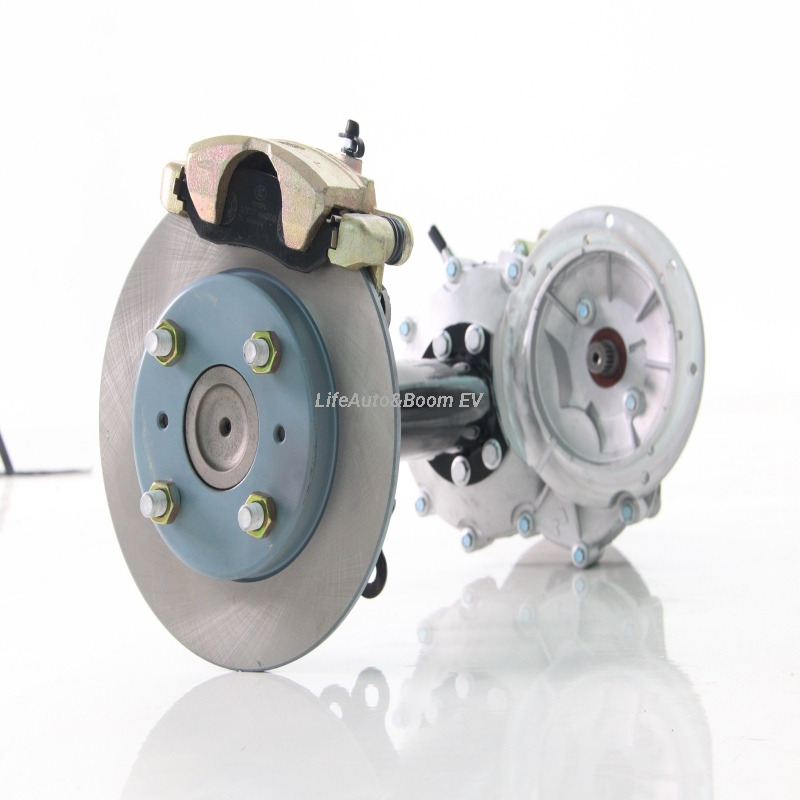

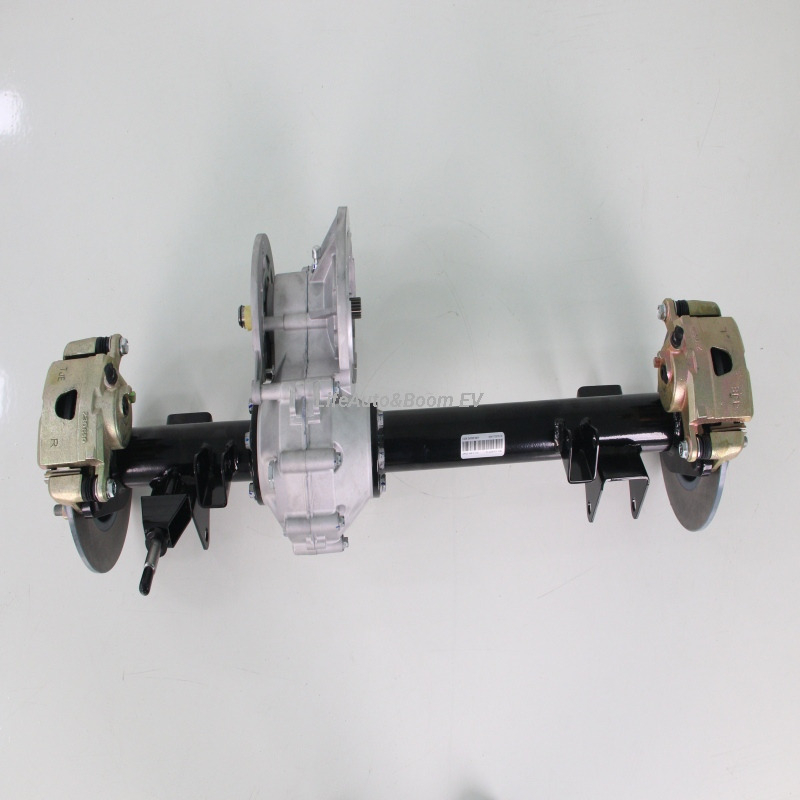

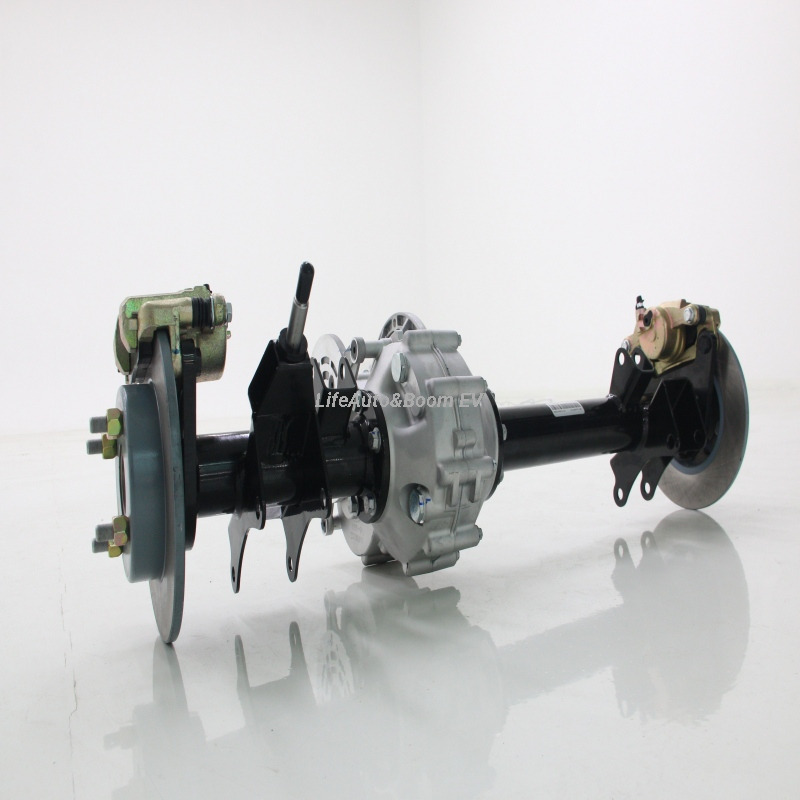

Rear - axle assembly
Profile: The rear - axle assembly of a golf cart is a key component of the vehicle's transmission system. It is responsible for transmitting the power of the engine or motor to the wheels to achieve the driving of the vehicle. At the same time, it supports the weight of the vehicle body, ensuring the stability and maneuverability of the vehicle during driving, and plays an important role in the normal operation and driving safety of the golf cart.
Color: The main body is black, and some components are silver and the original metal color.
Functions of the Golf Cart Rear Axle Assembly
1. Power Transmission
2. Deceleration and Torque Increase
3. Ensuring Driving Stability
4. Bearing Load Pressure
5. Auxiliary Braking Function
Common Faults and Solutions
Oil leakage | Cause:aging, damage or improper installation of the oil - seal. Solution:A new oil - seal needs to be replaced, and ensure the accurate position during installation. |
Abnormal noise | Cause:gear wear, lack of oil or bearing damage. Solution:Check the gear wear condition, replenish the lubricating oil or replace the worn - out gears and damaged bearings. |
Overheating | Cause: poor lubrication, excessive load or too - tight component assembly. Solution:Check the quantity and quality of the lubricating oil, adjust the load, and reassemble the components to ensure an appropriate clearance. |
Poor power transmission | Cause: deformation of the half - shaft and the wear of the spline. Solution:Replace the deformed half - shaft, and repair or replace the worn - out spline components. |
How to Determine if the Golf Cart Rear Axle Assembly Needs Repair?
- Abnormal Noise: When the vehicle is moving, if there is a , continuous metal friction sound or clicking sound from the rear axle, it may indicate issues such as gear or bearing wear, and repair is required.
- Increased Vibration: If you feel a significant increase in vibration at the rear axle during driving, it may be due to loose or unbalanced components, and inspection and repair should be conducted.
- Oil Leakage: The presence of oil stains on the housing or connections of the rear axle assembly indicates damaged seals or excessive lubricating oil, requiring inspection and maintenance.
- Abnormal Driving Performance: If the vehicle deviates from its path while driving or experiences a decrease in power, it may be caused by rear axle component failures affecting power transmission and driving stability.
- Overheating: After driving a certain distance, if the temperature of the rear axle is too high to touch for an extended period, it may be due to problems such as poor lubrication, which needs to be checked and addressed.
FAQ
1.Q: Why does my golf cart's rear axle make a grinding noise?
A: Likely due to worn bearings or low lubricant. Check oil levels first; replace parts if noise persists.
2.Q: How often should I service the rear axle assembly?
A: Service every 6-12 months (or 500-1000 miles). Focus on oil changes and bearing inspections.
3.Q: Can I drive with a damaged rear axle assembly?
A: No. It risks further damage to tires or transmission—stop use and repair immediately.
4.Q: What type of oil is best for the rear axle?
A: Use SAE 80W-90 gear oil (or as specified in your cart’s manual) for proper lubrication.
